Nitrogen Generator

for 3D Metal Printer

Significant cost savings
Use at the point-of-use, no cost-intensive pipe installation
No use of dangerous high pressure gas cylinders
No ordering procedures, no rental invoices, no contracts
No access problems due to truck deliveries
Environmentally friendly

Request Online Live Demo

Product description
Technical details
Components
Downloads

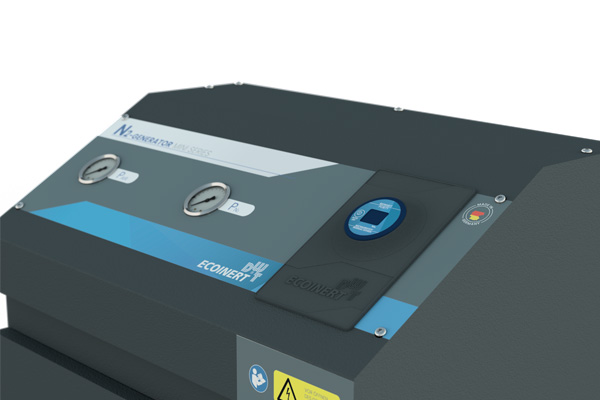

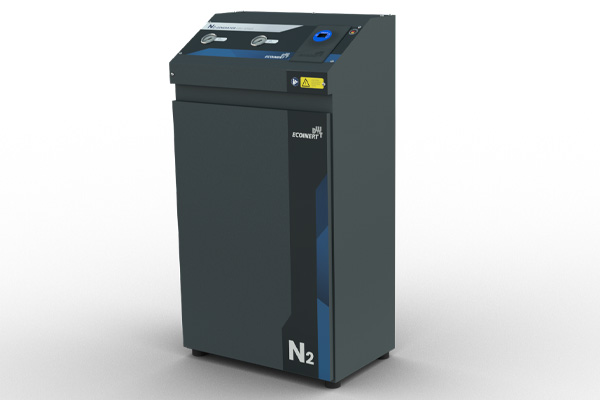

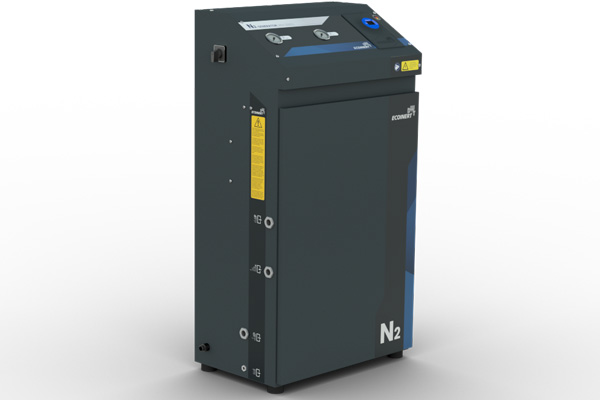

Compact nitrogen generator with integrated storage tank and automatic shutdown. Available in sizes from 0.03 Nm³/h, covering even very low inert gas requirements. Due to its small and compact design, the system can be placed anywhere.

The nitrogen system operates quietly in a continuous process. The systems include an electronic shutdown and a storage tank to balance demand peaks and purity fluctuations at startup. Nitrogen purity and pressure are displayed.

Nitrogen Generator for 3D Metal Printer

Nitrogen purity (adjustable)

95 – 99,9 %

Delivery quantity*

0,03 – 8 Nm³/h / 1-280 Cu.Ft./h

Inlet pressure

4 - 8,5 bar(ü) / 58 - 123 psi

Outlet pressure (adjustable)

Max. 1.5 bar / 21 psi below inlet pressure

Pressure dew point

≤-40°C / -40 F

Ambient temperature

Min. 5°C / 41 F - max. 45°C / 104 F

Storage size

50 ltr. / 190 gal

Size (H x W x D)

1120 x 600 x 390 mm / 21 x 44 x15 Cu.Ft.

Power supply

110 - 230 V, 50/60 Hz

Sound level dB(A)

<45

Weight

78 - 82 kg / 172 - 180 lb

_{*Depending on the type of generator
and depending on the inlet pressure}

Electronic shut-off
Integrated storage tank to compensate for of demand peaks and purity fluctuations
High-performance membrane
Digital display of nitrogen quality
Differential pressure indicator
Filter wear indicator
Automatic condensation drain

Flyer Nitrogen Generator Mini

DOWNLOAD PDF

Nitrogen Generator for 3D Metal Printer Advantages

Made in Germany

We offer competent service through subsidiaries as well as our worldwide network of authorised partners.

Made in Germany

amortization

Payback period for nitrogen generators, significant cost savings

membrane technology 4.0

Our nitrogen generator uses the latest membrane technology to extract high purity nitrogen from the surrounding air.
