Nitrogen Generator

for sprinkler system

No humidity and no corrosion in piping
Less maintenance of sprinkler system
Significant cost savings
Long service life of sprinkler system
Integrated tank for nitrogen peaks
No external compressor needed
Environmentally friendly

Request Online Live Demo

Product description
Technical details
Advantages
Downloads

Corrosion, caused by moisture and atmospheric oxygen in the dry sprinkler system, is a common issue. Corrosion causes high maintenance and shortens the lifetime of the sprinkler system piping. Nitrogen, which is a dry inert gas, can avoid all these problems and significantly reduces corrosion within the pipeline systems. Nitrogen also helps offset permissible leakage losses per VdS CEA 4001, aligning with FM guidelines that recommend using inert gases like nitrogen as an alternative. The best solution, to use nitrogen in this application, is a nitrogen generator.

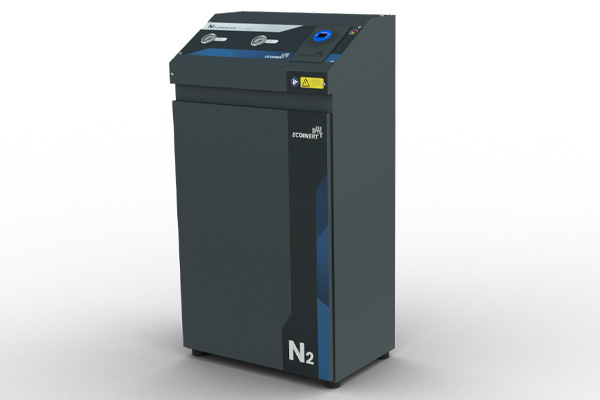

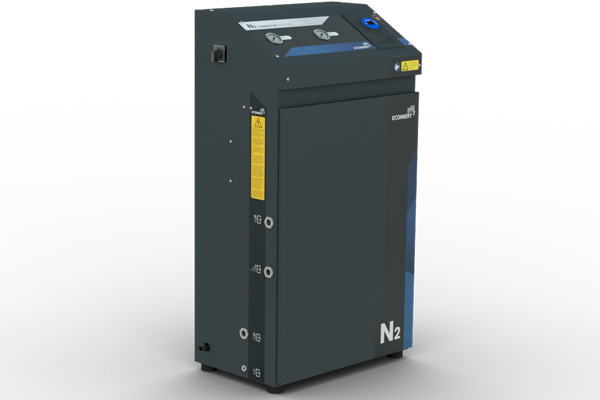

Nitrogen is produced 24/7 on-site and the generator avoids using expensive and risky high pressure nitrogen cylinders. The unit ECO KPL is a compact nitrogen generator with integrated 50l storage tank and automatic shutdown.
The nitrogen system operates quietly in a continuous process. The systems include an electronic shutdown and a storage tank to balance demand peaks and purity fluctuations at startup. Nitrogen purity and pressure are displayed.

Nitrogen Generator for sprinkler system

Nitrogen purity (adjustable)

95 – 99,9 %

Delivery quantity (adjustable)

0,6 – 2,5 Nm³/h / 1-280 Cu.Ft./h

Outlet pressure (adjustable)

Max. 8 bar / 113 psi

Pressure dew point

≤-40°C / -40 F

Ambient temperature

Min. 5°C / 41 F - max. 45°C / 104 F

Internal storage size

50 ltr. / 190 gal

Size (H x W x D)

1120 x 600 x 390 mm / 21 x 44 x15 Cu.Ft.

Power supply

110 - 230 V, 50/60 Hz

Sound level dB(A)

<54

Weight

91 kg / 201 lb

Included 50 l storage tank
Electronic shut-off
Integrated storage tank to compensate for of demand peaks and purity fluctuations
Extrem dry nitrogen with pressure due point of -20°C

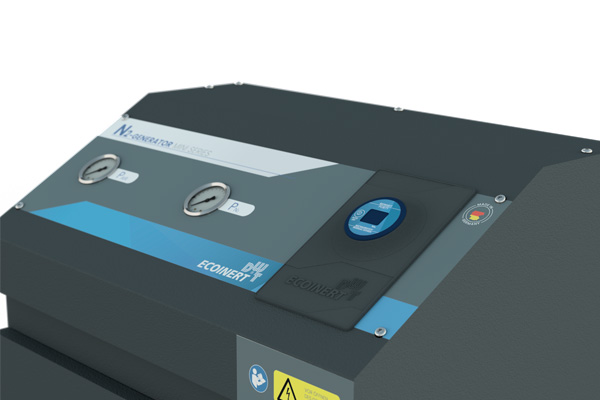

Digital display of nitrogen purity
Integrated compressor
Filter wear indicator
Automatic condensation drain

Flyer Nitrogen Generator for ECO-KPL

DOWNLOAD PDF

Nitrogen Generator for sprinkler system

Made in Germany

We offer competent service through subsidiaries as well as our worldwide network of authorised partners.

Made in Germany

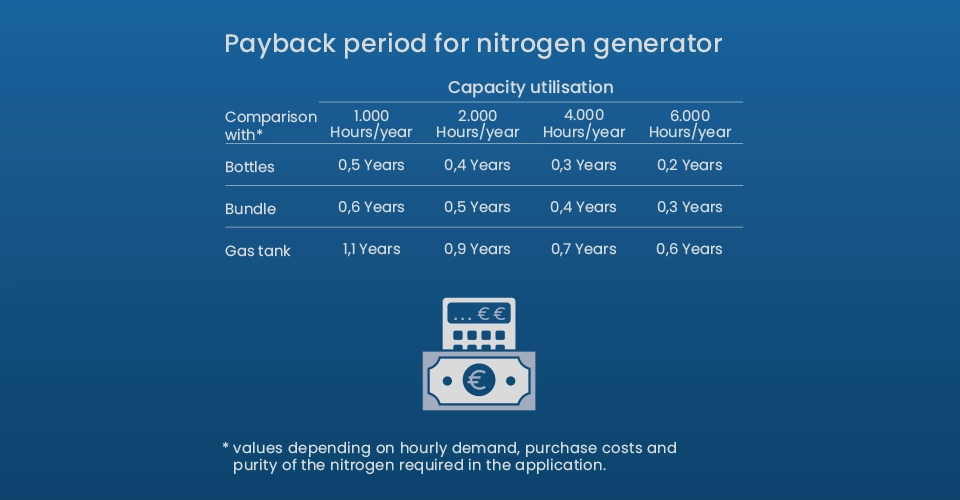

amortization

Payback period for nitrogen generators, significant cost savings

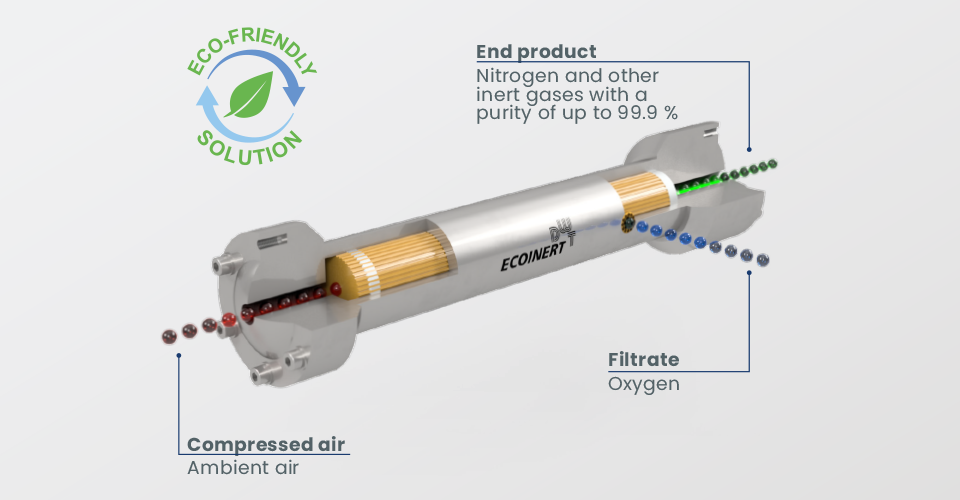

membrane technology 4.0

Our nitrogen generator uses the latest membrane technology to extract high purity nitrogen from the surrounding air.
